Dock Shelters

SPECIFICATION SL101 FOAM PAD DOCK SEAL

Dock seals are manufactured from lightweight memory foam with excellent return and is bonded to either a 50mm treated timber backboard or a galvanised steel tray covered with a PVC type material. The pads have a neoprene front face and the DR101 model has wear pleats for extra protection to the pad. Both the plain fascia (SL100) and wear pleats (SL101) can have high visibility guide stripes.

Options

• Various projection
• Tapered side pads for reducing door width
• Wedged side pads for sloping yards
• Full height guide stripe in white, yellow or other
• Your logo at no extra cost
• Mobile headed seals (DRM) for various vehicle heights

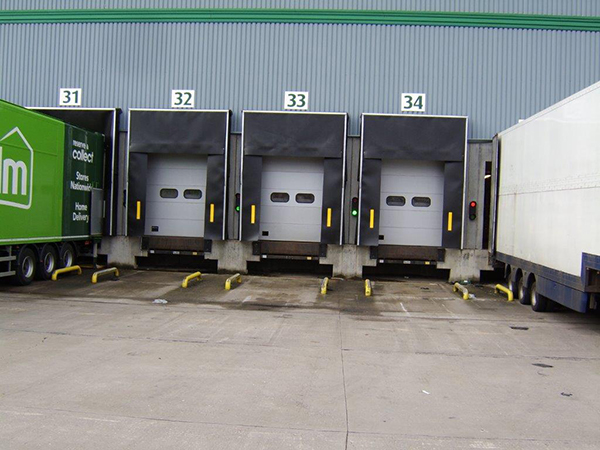

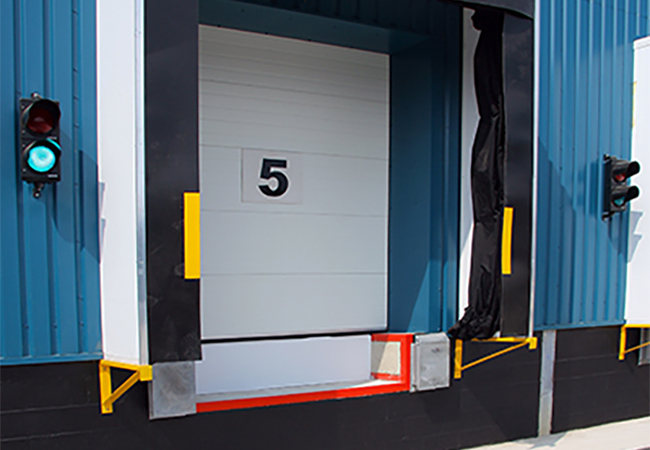

The standard size of a DR300 is 3500mm wide x 3500mm high x 600mm projection but can be made to suit varying vehicle heights. The standard head curtain size is 1200mm and the side curtains are 700mm, although this can be changed to suit. The roof of the shelter is sloped to allow any water to run off.

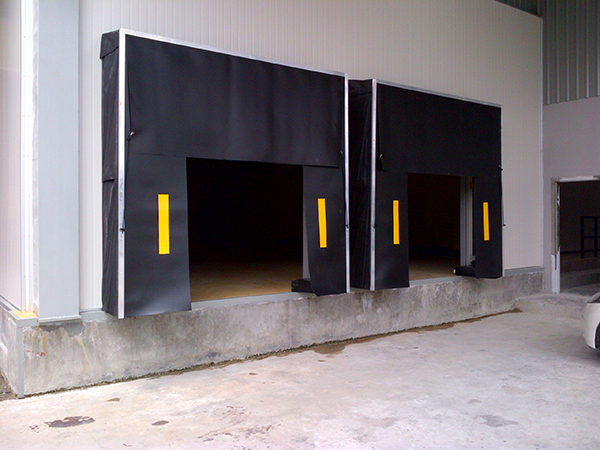

Retractable shelters are constructed from electro-plated box section and covered in a PVC type material and are made with cantilever arms. The curtains are made from heavy duty material with high visibility guide stripes to the side curtains.

Options

• 900mm projection
• Ground level
• Sewn type curtains
• Other colours available
• Your logo at no extra cost
• Electrically operated adjustable head curtain
• Corner pads
• Partial or fully laminated head curtain

Once the vehicle is docked the shelter is switched on activating the fan and the head and side bags inflate against the vehicle creating a good all round seal. Loading or unloading of the vehicle can then take place with little risk of the goods or operatives being affected by the outside environment.The standard size is 3600mm wide x 3700mm high x 900mm projection, however this can be changed depending on the vehicles using the bay.

Scotlifts airbags are manufactured from 1000d cordura type material which is a hardwearing, woven nylon coated fabric with a high tear resistance. The shelter sides are manufactured from box section and a PVC type material. The fan used is normally a three phase centrifugal fan that fully inflates the bags between 10-20 seconds. Once the fan is deactivated the bags will return to their deflated position behind the storage curtains by a counter balance weight system.

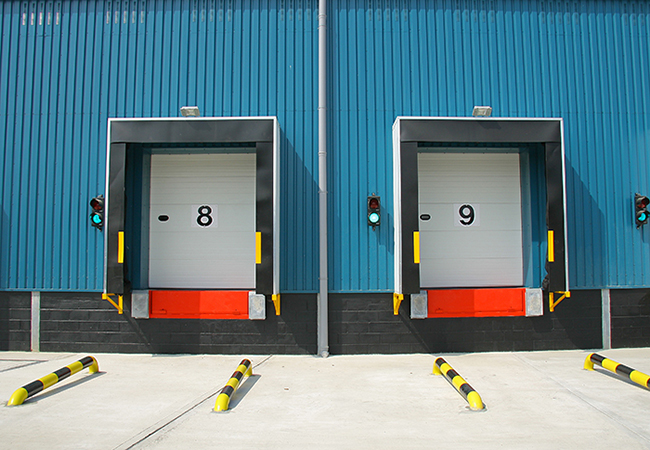

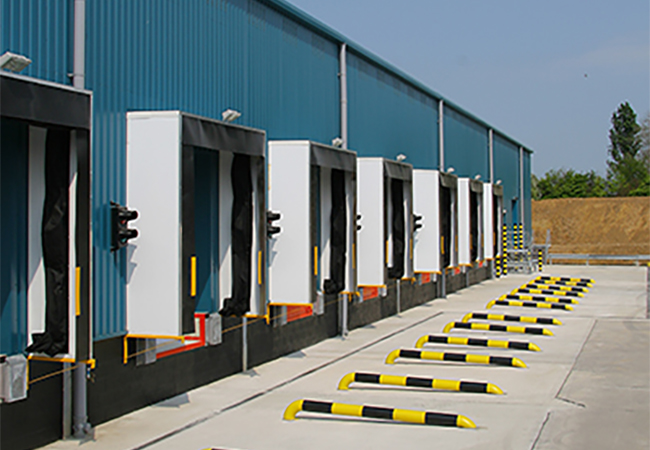

If temperature control is important to the bay, for example cold storage, then the standard DR400 would be a better option, with its fully insulated side and head panels.

Options

• SL400 fully insulated version
• Various sizes
• Various head bag sizes
• Ground level
• Other colours available
• Your logo at no extra cost
• Single phase fan
• Corner pads

The standard size is 3400mm wide x 3700mm high x 900mm projection, however this can be changed depending on the vehicles using the bay. Scotlifts airbags are manufactured from 1000d cordura type material which is a hardwearing, woven nylon coated fabric with a high tear resistance.

The fan used is normally a three phase centrifugal fan that fully inflates the bags between 10-20 seconds. Once the fan is deactivated the bags will return to their deflated position behind the storage curtains by a counter balance weight system.

Options

• Various sizes
• Ground level
• Other colours available
• Your logo at no extra cost
• Single phase fan
• Corner pads
